Engine Modules And Sensors (3.0 V6 Diesel)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Engine Modules And Sensors (3.0 V6 Diesel)

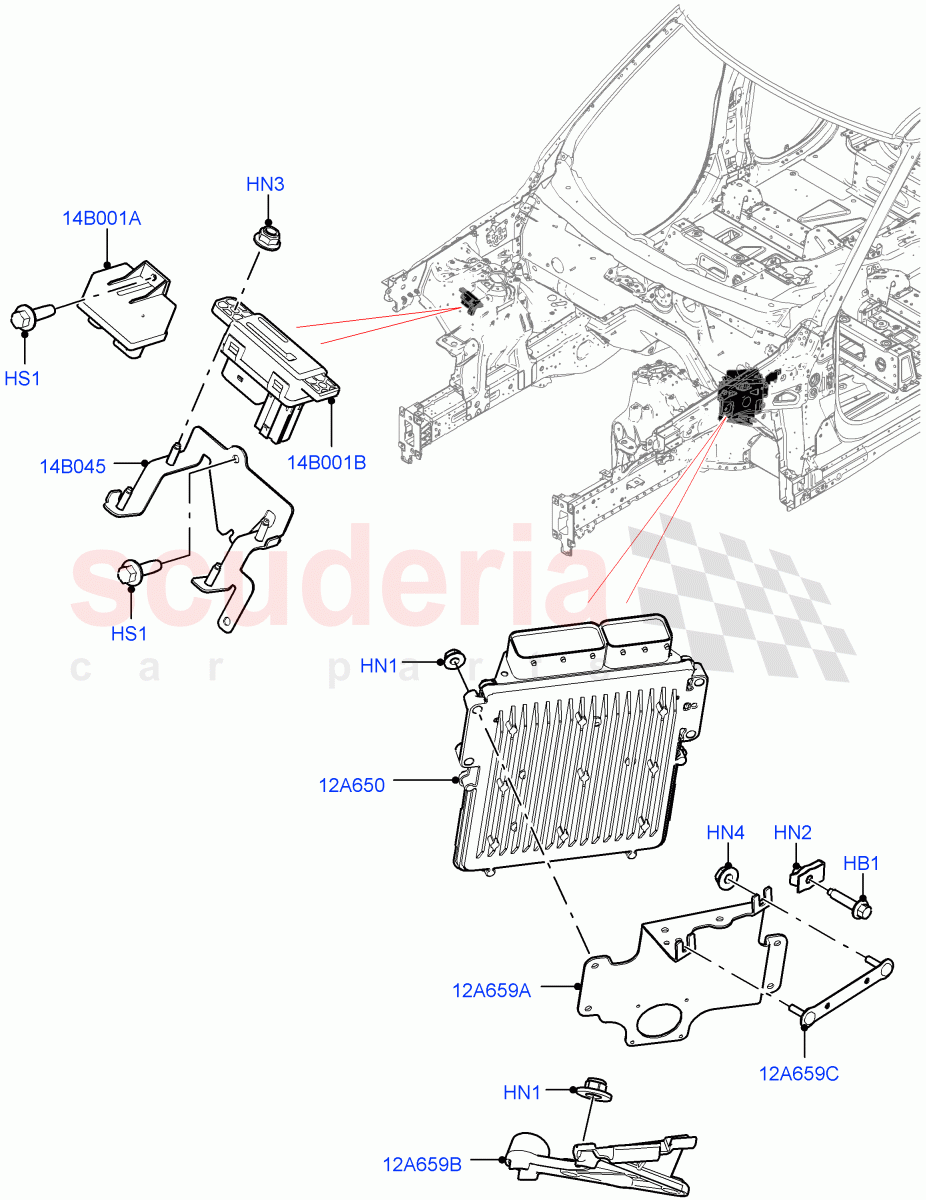

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4147433 BOLT $1.58 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.19 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.61 IN STOCK
FX106046 NUT - FLANGED $0.61 IN STOCK
Photo Part No Description Price (each) Stock
LR045542 NUT $1.31 To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.90 To Order
Photo Part No Description Price (each) Stock
LR041456 MODULE - ENGINE CONTROL $1,417.42 To Order
LR041956 MODULE-ENGINE CONTROL $1,041.22 To Order
LR050996 MODULE - ENGINE CONTROL $1,861.40 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR138048 BRACKET - RELAY $19.85 To Order
LR138048 BRACKET - RELAY $19.85 To Order
Photo Part No Description Price (each) Stock
LR086924 BRACKET - ENGINE CONTROL MODULE $25.33 To Order
Photo Part No Description Price (each) Stock
LR138403 BRACKET - CONTROL MODULE $10.18 To Order
Photo Part No Description Price (each) Stock
LR124659 BRACKET - ENGINE CONTROL MODULE $6.89 To Order
Photo Part No Description Price (each) Stock
LR014309 CONTROL UNIT - GLOW PLUG $170.95 To Order
LR014309 CONTROL UNIT - GLOW PLUG $170.95 To Order
LR082464 CONTROL UNIT - GLOW PLUG $141.16 To Order
Photo Part No Description Price (each) Stock
LR074187 CONTROL UNIT - GLOW PLUG $146.43 To Order
LR074186 CONTROL UNIT - GLOW PLUG $146.43 To Order
LR084648 CONTROL UNIT - GLOW PLUG $111.05 To Order
...and 1 more part variants. See table on right for more details.
View All
Engine Modules And Sensors (3.0 V6 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4147433
BOLT
M6 X 25MM / To: GA999999
IN STOCK 		$1.58 2
HN1 FN106042
NUT
Hexagonal Head, M6
IN STOCK 		$1.04 4
HN2 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / To: GA999999 		$1.19 2
HN3 FX106046
NUT - FLANGED
Hexagonal Head, M6 / To: FA999999
IN STOCK 		$0.61 4
HN3 FX106046
NUT - FLANGED
LEV 160 / Hexagonal Head, M6 / From: GA000001
IN STOCK 		$0.61 4
HN4 LR045542
NUT
M6, Nut And Washer / From: HA000001 		$1.31 2
HS1 RYP500200
SCREW
Hexagonal Head, M6 X 20MM 		$0.90 1
12A650 LR041456
MODULE - ENGINE CONTROL
3.0L 24V V6 Turbo Diesel Std Flow / Module - Engine Control / To: DA999999 		$1,417.42 1
12A650 LR041956
MODULE-ENGINE CONTROL
3.0L 24V V6 Turbo Diesel Std Flow / Module - Engine Control, When Replacing, Software Update Is Required / From: EA000001 / To: EA124981 		$1,041.22 1
12A650 LR050996
MODULE - ENGINE CONTROL
3.0L 24V V6 Turbo Diesel Std Flow / Module - Engine Control / From: EA124982 		$1,861.40 1
12A650 LR049180
MODULE-ENGINE CONTROL
3.0 V6 Diesel Electric Hybrid Eng / Module - Engine Control / From: EA000001 / To: FA241939 		$1,549.68 1
12A650 LR067445
MODULE - ENGINE CONTROL
3.0 V6 D Gen2 Mono Turbo / Module - Engine Control / From: FA000001 / To: FA999999 		$1,908.27 1
12A650 LR070401
MODULE-ENGINE CONTROL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Module - Engine Control / From: GA000001 / To: GA305248 		$1,380.25 1
12A650 LR070875
MODULE-ENGINE CONTROL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, Japan Requirements / Module - Engine Control / From: GA000001 / To: GA317489 		$1,822.49 1
12A650 LR069186
MODULE-ENGINE CONTROL
3.0 V6 Diesel Electric Hybrid Eng / Module - Engine Control / From: FA241940 / To: FA999999 		$1,932.80 1
12A650 LR076231
MODULE - ENGINE CONTROL
3.0 V6 Diesel Electric Hybrid Eng / Module - Engine Control / From: GA000001 		$937.91 1
12A650 LR079607
MODULE-ENGINE CONTROL
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Module - Engine Control / From: GA000001 / To: GA317489 		$1,251.67 1
12A650 LR090714
MODULE-ENGINE CONTROL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Module - Engine Control / From: GA305249 / To: GA999999 		$1,379.86 1
12A650 LR086436
MODULE - ENGINE CONTROL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Module - Engine Control / From: HA000001 		$1,648.29 1
12A650 LR090831
MODULE-ENGINE CONTROL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD / Module - Engine Control / From: GA317490 / To: GA999999 		$2,343.32 1
12A650 LR106651
MODULE-ENGINE CONTROL
3.0 V6 D Low MT ROW / Module - Engine Control / From: JA000001 / To: JA999999 		$1,443.49 1
12A650 LR117874
MODULE-ENGINE CONTROL
EU6D Diesel + DPF Emissions / Module - Engine Control / From: KA000001 		$1,123.83 1
12A650 LR117875
MODULE-ENGINE CONTROL
Proconve L6 Emissions / Module - Engine Control / From: KA000001 		$1,092.60 1
12A650 LR114128
MODULE - ENGINE CONTROL
3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions / Module - Engine Control / From: HA692863 / To: HA999999 		$1,517.25 1
12A650 LR081414
MODULE - ENGINE CONTROL
3.0 V6 D Gen2 Mono Turbo / Module - Engine Control / From: HA000001 / To: HA692862 		$1,241.71 1
12A650 LR081414
MODULE - ENGINE CONTROL
3.0 V6 D Low MT ROW, EU2 / Module - Engine Control / From: HA692863 / To: HA999999 		$1,241.71 1
12A659A LR086924
BRACKET - ENGINE CONTROL MODULE
Upper 		$25.33 1
12A659B LR138403
BRACKET - CONTROL MODULE
Lower 		$10.18 1
12A659C LR124659
BRACKET - ENGINE CONTROL MODULE
Engine Control Module (ECM), To Body / From: HA000001 		$6.89 1
14B001A LR014309
CONTROL UNIT - GLOW PLUG
Glow Plug / To: FA999999 		$170.95 1
14B001A LR014309
CONTROL UNIT - GLOW PLUG
3.0L 24V V6 Turbo Diesel Std Flow / Glow Plug / From: GA000001 / To: HA999999 		$170.95 1
14B001A LR082464
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions / Glow Plug / From: JA000001 		$141.16 1
14B001B LR074187
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Glow Plug, Lower / From: GA000001 / To: GA265257 		$146.43 1
14B001B LR074186
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Glow Plug, Upper / From: GA000001 / To: GA265257 		$146.43 1
14B001B LR084648
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Glow Plug, Upper / From: GA265258 		$111.05 1
14B001B LR084649
CONTROL UNIT - GLOW PLUG
3.0 V6 D Gen2 Mono Turbo, LEV 160 / Glow Plug, Lower / From: GA265258 		$112.12 1
14B045 LR138048
BRACKET - RELAY
To: FA999999 		$19.85 1
14B045 LR138048
BRACKET - RELAY
3.0 V6 D Gen2 Mono Turbo, LEV 160 / From: GA000001 		$19.85 1
