Name: Pulleys And Drive Belts (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 5.0 (1 reviews)

View All

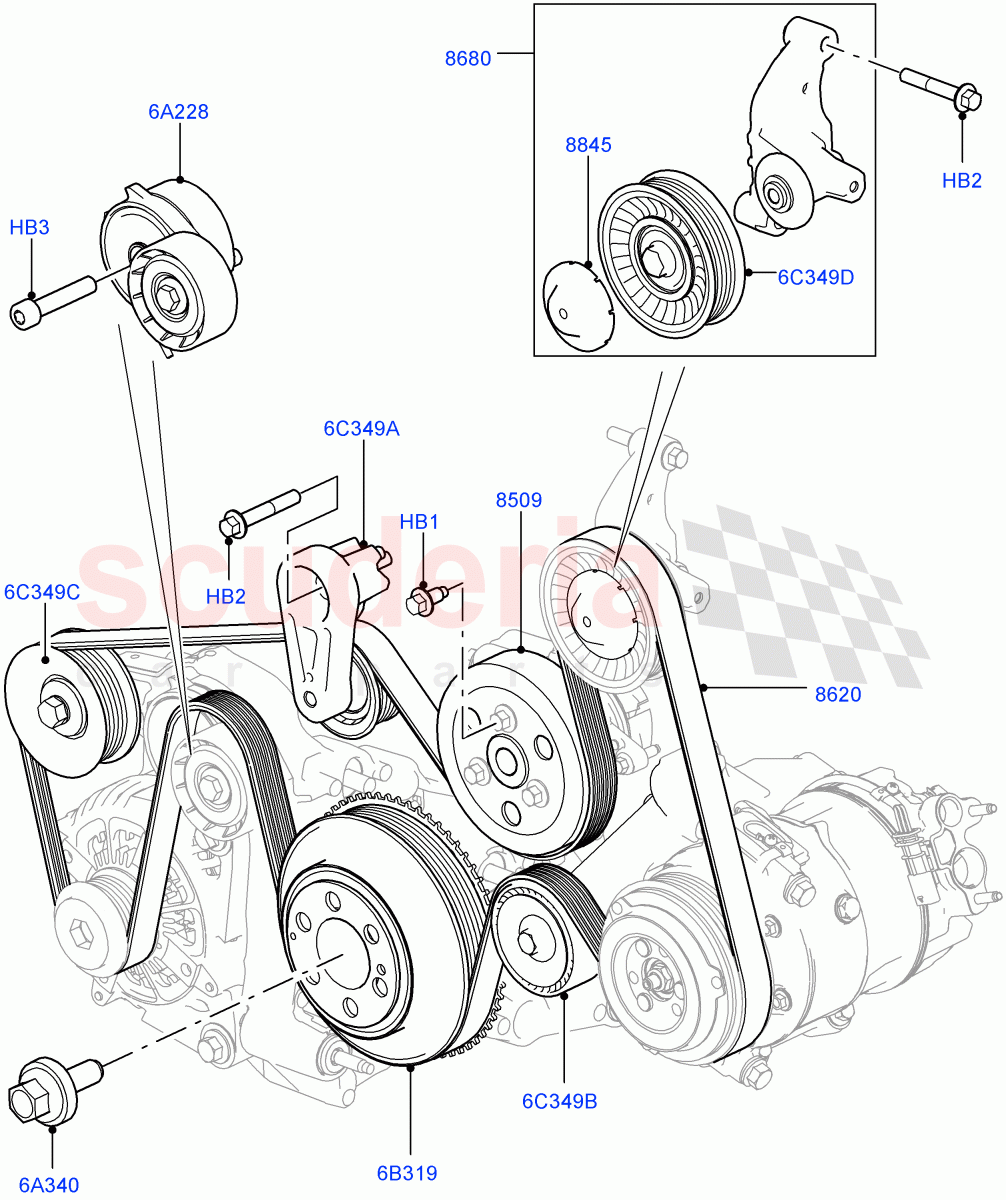

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1310106	BOLT - HEX.HEAD	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000067	BOLT - HEX.HEAD	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057457	BELT - ACCESSORY DRIVE	$62.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057460	PULLEY AND ADJUSTMENT ARM - IDLER	$149.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057454	CAP - IDLER PULLEY	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003651	PULLEY - TENSION	$129.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025009	BOLT	$9.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR057451	Idler	$109.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057452	Idler	$61.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057467	Idler	$66.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057453	Idler	$92.21	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1310106	BOLT - HEX.HEAD	1310106 BOLT - HEX.HEAD M8 X 14MM	$2.96	3
HB2	FB108106	BOLT	FB108106 BOLT Hexagonal Head, M8 x 50MM	$10.49	4
HB3	LR000067	BOLT - HEX.HEAD	LR000067 BOLT - HEX.HEAD M10 X 50MM, Torx	$1.11	1
6A228	LR003651	PULLEY - TENSION	LR003651 PULLEY - TENSION	$129.84	1
6A340	LR025009	BOLT IN STOCK	LR025009 BOLT Pulley And Damper Assembly, With Washer IN STOCK	$9.33	1
6B319	LR068885	PULLEY - CRANKSHAFT	LR068885 PULLEY - CRANKSHAFT To: EA196690	$321.45	1
6B319	LR078547	PULLEY - CRANKSHAFT	LR078547 PULLEY - CRANKSHAFT From: EA196691	$388.16	1
6C349A	LR057451	Idler	LR057451 Idler	$109.80	1
6C349B	LR057452	Idler	LR057452 Idler LH Lower	$61.12	1
6C349C	LR057467	Idler	LR057467 Idler RH Upper	$66.03	1
6C349D	LR057453	Idler	LR057453 Idler LH Upper	$92.21	1
8509	LR025020	PULLEY - WATER PUMP	LR025020 PULLEY - WATER PUMP To: GA315803	$30.19	1
8509	LR095344	PULLEY - WATER PUMP	LR095344 PULLEY - WATER PUMP From: GA315804	$27.97	1
8620	LR057457	BELT - ACCESSORY DRIVE	LR057457 BELT - ACCESSORY DRIVE Accessory Drive	$62.90	1
8680	LR057460	PULLEY AND ADJUSTMENT ARM - IDLER	LR057460 PULLEY AND ADJUSTMENT ARM - IDLER LH Upper, With Idler	$149.87	1
8845	LR057454	CAP - IDLER PULLEY	LR057454 CAP - IDLER PULLEY idler	$4.82	1

Pulleys And Drive Belts (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
