View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS110356	SCREW	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050974	BOLT	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105082	SCREW	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054367	CAP - BREATHER TUBE	$9.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090949	STARTER MOTOR	$653.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090958	SHIELD - STARTER MOTOR HEAT	$72.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090954	TUBE - BREATHER	$60.09	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS110356	SCREW	FS110356 SCREW Hexagonal Head, M10 x 35MM, Starter / From: KA000001	$0.74	1
HB2	LR050974	BOLT	LR050974 BOLT M10 x 98MM / From: KA000001	$4.15	1
HS1	FS105082	SCREW	FS105082 SCREW Heat Shield, M5 x 8MM / From: KA000001	$0.50	2
9K617	LR090954	TUBE - BREATHER	LR090954 TUBE - BREATHER Complete / From: KA000001	$60.09	1
8845	LR054367	CAP - BREATHER TUBE	LR054367 CAP - BREATHER TUBE Breather Pipe / From: KA000001	$9.56	1
11002	LR090949	STARTER MOTOR	LR090949 STARTER MOTOR From: KA000001	$653.73	1
11006	LR090958	SHIELD - STARTER MOTOR HEAT	LR090958 SHIELD - STARTER MOTOR HEAT From: KA000001	$72.42	1

Haven't found what you're looking for?

View Cart / Checkout

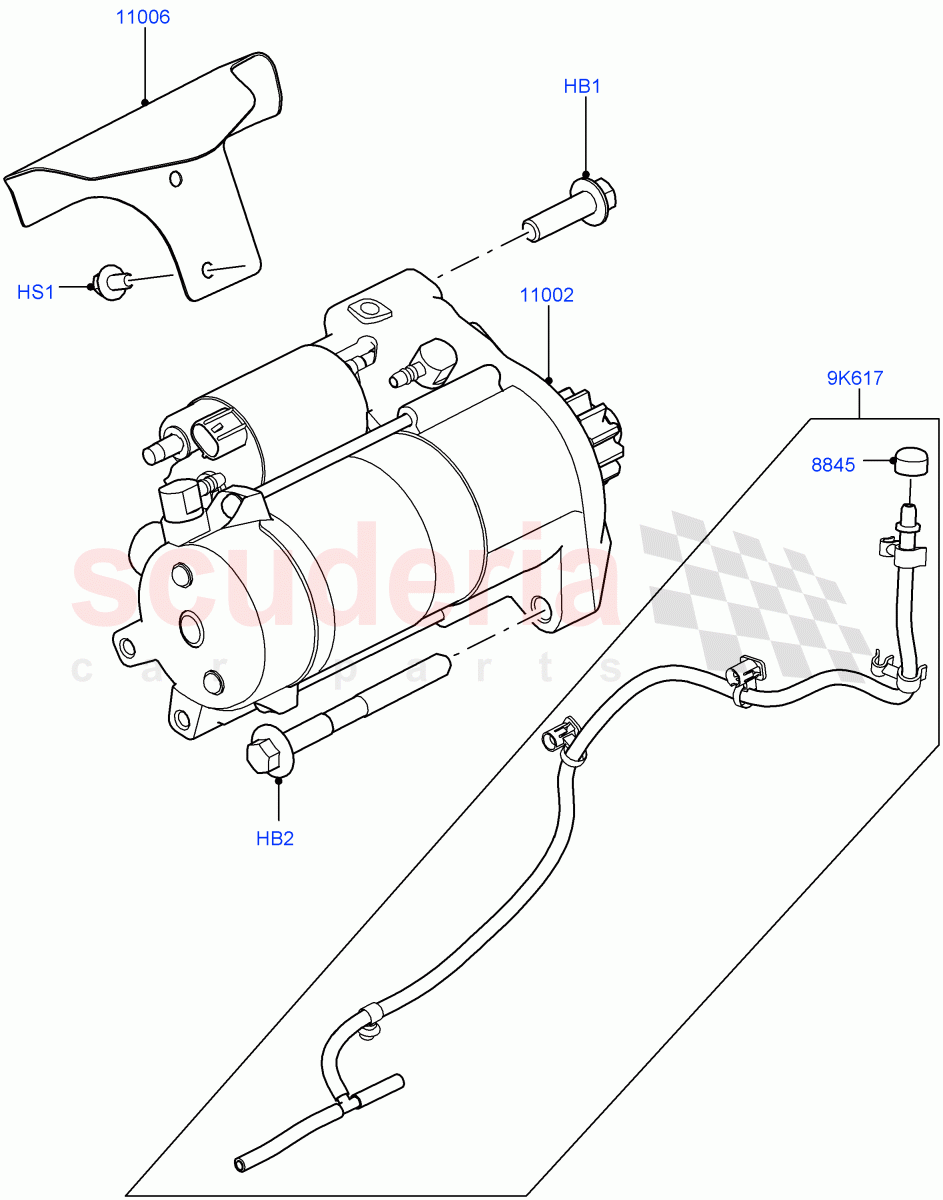

Starter Motor (5.0L P Aj133 Dohc Cda S/C Enhanced) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]
