Name: Engine Modules And Sensors (4.4L DOHC DITC V8 Diesel)
Rating: 5.0 (1 reviews)

Engine Modules And Sensors (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Engine Modules And Sensors (4.4L DOHC DITC V8 Diesel)

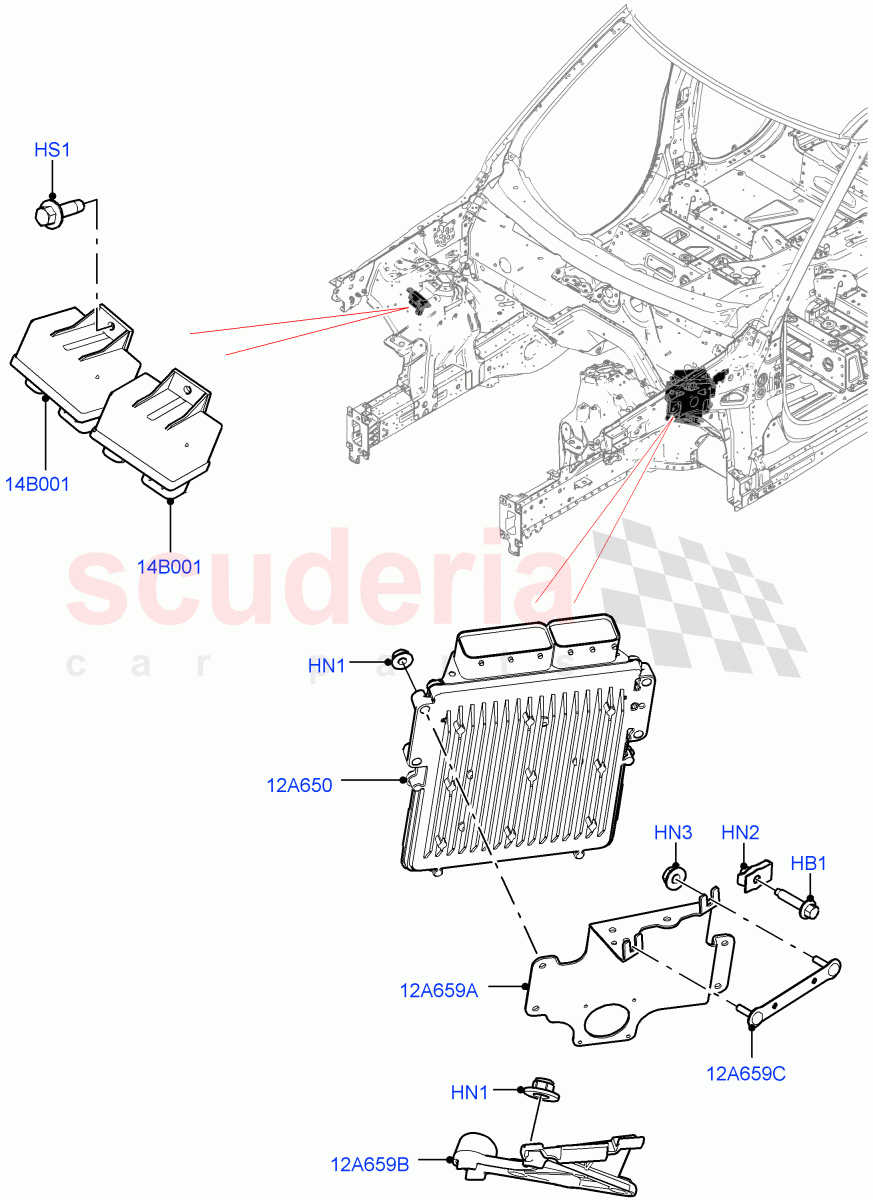

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4147433	BOLT	$1.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045542	NUT	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050995	MODULE - ENGINE CONTROL	$1,480.12	To Order
	LR070402	MODULE-ENGINE CONTROL	$1,932.80	To Order
	LR090715	MODULE-ENGINE CONTROL	$1,812.99	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR022838	CONTROL UNIT - GLOW PLUG	$110.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086924	BRACKET - ENGINE CONTROL MODULE	$25.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138403	BRACKET - CONTROL MODULE	$10.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124659	BRACKET - ENGINE CONTROL MODULE	$6.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4147433	BOLT IN STOCK	4147433 BOLT M6 X 25MM / To: GA999999 IN STOCK	$1.58	2
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 IN STOCK	$1.04	7
HN2	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring / To: GA999999	$1.19	2
HN3	LR045542	NUT	LR045542 NUT M6, Nut And Washer / From: HA000001	$1.31	2
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM	$0.90	2
12A650	LR050995	MODULE - ENGINE CONTROL	LR050995 MODULE - ENGINE CONTROL Engine Control / To: FA999999	$1,480.12	1
12A650	LR070402	MODULE-ENGINE CONTROL	LR070402 MODULE-ENGINE CONTROL Engine Control / From: GA000001 / To: GA105921	$1,932.80	1
12A650	LR090715	MODULE-ENGINE CONTROL	LR090715 MODULE-ENGINE CONTROL Engine Control / From: GA105922 / To: GA999999	$1,812.99	1
12A650	LR086369	MODULE - ENGINE CONTROL	LR086369 MODULE - ENGINE CONTROL Engine Control / From: HA000001 / To: HA999999	$2,266.06	1
12A650	LR101434	MODULE-ENGINE CONTROL	LR101434 MODULE-ENGINE CONTROL Engine Control / From: JA000001 / To: JA999999	$1,361.87	1
12A650	LR122380	MODULE-ENGINE CONTROL	LR122380 MODULE-ENGINE CONTROL LEV 160 / Engine Control / From: KA000001	$2,187.72	1
12A650	LR122381	MODULE-ENGINE CONTROL	LR122381 MODULE-ENGINE CONTROL EU6D Diesel + DPF Emissions / Engine Control / From: KA000001	$2,215.86	1
12A659A	LR086924	BRACKET - ENGINE CONTROL MODULE	LR086924 BRACKET - ENGINE CONTROL MODULE Upper	$25.33	1
12A659B	LR138403	BRACKET - CONTROL MODULE	LR138403 BRACKET - CONTROL MODULE Lower	$10.18	1
12A659C	LR124659	BRACKET - ENGINE CONTROL MODULE	LR124659 BRACKET - ENGINE CONTROL MODULE Engine Control Module (ECM), To Body / From: HA000001	$6.89	1
14B001	LR022838	CONTROL UNIT - GLOW PLUG	LR022838 CONTROL UNIT - GLOW PLUG Glow Plug	$110.92	2
