Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Exhaust System (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYG500041 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
SN106127L BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT Enquire To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WCE500180 MUFFLER - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
YQU500400 BRACKET - 3-WAY CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
WCL500040 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
WCM100460L GASKET Enquire To Order
Photo Part No Description Price (each) Stock
YQR500190 CLIP - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
YQU500360 BRACKET Enquire To Order
YQU500370 BRACKET Enquire To Order
YSU500140 BRACKET Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WCD500202 CONVERTER Enquire To Order
WCD501301 PIPE - EXHAUST - FRONT Enquire To Order
WCD500442 CONVERTER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WCD500212 CONVERTER Enquire To Order
WCD501311 PIPE - EXHAUST - FRONT Enquire To Order
WCD500452 CATALYTIC CONVERTER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
DBP7104 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
WCS000150 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
WCS500010 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
WCI500160 MUFFLER - REAR Enquire To Order
Photo Part No Description Price (each) Stock
WCI500170 MUFFLER - REAR Enquire To Order
Photo Part No Description Price (each) Stock
MHK500840 SENSOR - LAMBDA Enquire To Order
Photo Part No Description Price (each) Stock
MHK500960 SENSOR - LAMBDA Enquire To Order
MHK501050 SENSOR - LAMBDA Enquire To Order
MHK500910 SENSOR - EXHAUST GAS - OXYGEN Enquire To Order
...and 2 more part variants. See table on right for more details.
View All

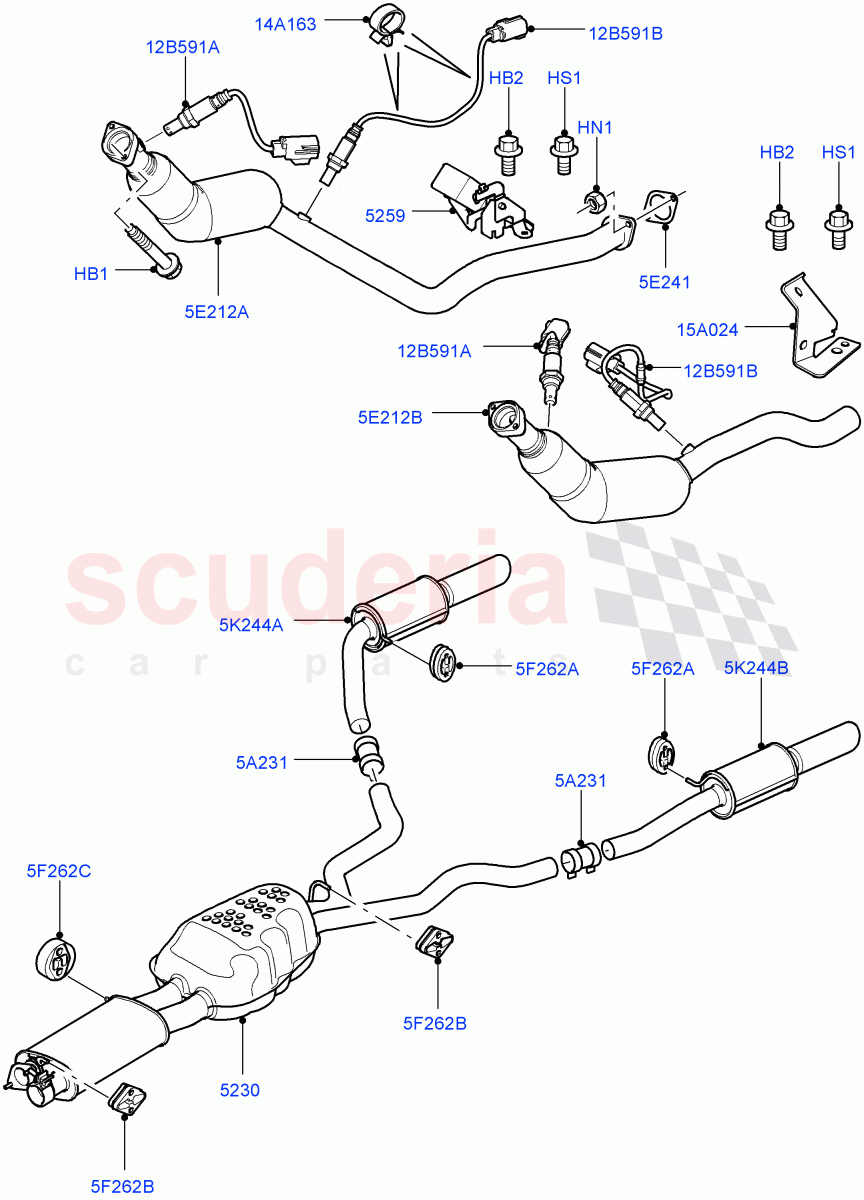

Exhaust System (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYG500041
BOLT
M8 X 45MM 		- 4 Enquire
HB2 SN106127L
BOLT
M6 		- 2 Enquire
HN1 LR025680
M10 FLANGED HEX NUT
M10 		- 2 Enquire
HS1 FS106127L
SCREW
M6 x 12MM 		- 2 Enquire
5A231 WCL500040
CLAMP - EXHAUST
60MM 		- 2 Enquire
5E212A WCD500202
CONVERTER
RH / To: 6A999999 		- 1 Enquire
5E212A WCD501301
PIPE - EXHAUST - FRONT
(+)"CDN/MEX/USA" / RH / From: 7A000001 / To: 8A138765 		- 1 Enquire
5E212A WCD500442
CONVERTER
(-)"CDN/MEX/USA" / RH / From: 7A000001 		- 1 Enquire
5E212A WCD502470
CATALYTIC CONVERTER - DOWNPIPE
(+)"CDN/MEX/USA" / RH / From: 8A138766 		- 1 Enquire
5E212B WCD500212
CONVERTER
LH / To: 6A999999 		- 1 Enquire
5E212B WCD501311
PIPE - EXHAUST - FRONT
(+)"CDN/MEX/USA" / LH / From: 7A000001 / To: 8A138765 		- 1 Enquire
5E212B WCD500452
CATALYTIC CONVERTER
(-)"CDN/MEX/USA" / LH / From: 7A000001 		- 1 Enquire
5E212B WCD502480
CATALYTIC CONVERTER - DOWNPIPE
(+)"CDN/MEX/USA" / LH / From: 8A138766 		- 1 Enquire
5E241 WCM100460L
GASKET 		- 1 Enquire
5F262A DBP7104
MOUNTING - RUBBER 		- 2 Enquire
5F262B WCS000150
INSULATOR - RUBBER 		- 2 Enquire
5F262C WCS500010
INSULATOR - RUBBER 		- 1 Enquire
5K244A WCI500160
MUFFLER - REAR
AJ Petrol 4.2 V8 Supercharged / Rear RH 		- 1 Enquire
5K244B WCI500170
MUFFLER - REAR
AJ Petrol 4.2 V8 Supercharged / Rear LH 		- 1 Enquire
12B591A MHK500840
SENSOR - LAMBDA
Exhaust Gas Oxygen, Front 		- 2 Enquire
12B591B MHK500960
SENSOR - LAMBDA
(-)"CDN/MEX/USA" / RH, Exhaust Gas Oxygen, Rear 		- 1 Enquire
12B591B MHK501050
SENSOR - LAMBDA
(+)"CDN/MEX/USA" / Exhaust Gas Oxygen, Rear / From: 7A000001 		- 2 Enquire
12B591B MHK500910
SENSOR - EXHAUST GAS - OXYGEN
(-)"CDN/MEX/USA" / LH, Exhaust Gas Oxygen, Rear 		- 1 Enquire
12B591B MHK500960
SENSOR - LAMBDA
(+)"CDN/MEX/USA" / RH, Exhaust Gas Oxygen, Rear / To: 6A999999 		- 1 Enquire
12B591B MHK500910
SENSOR - EXHAUST GAS - OXYGEN
(+)"CDN/MEX/USA" / LH, Exhaust Gas Oxygen, Rear / To: 6A999999 		- 1 Enquire
14A163 YQR500190
CLIP - WIRING 		- 2 Enquire
15A024 YQU500360
BRACKET
LH / To: 6A999999 		- 1 Enquire
15A024 YQU500370
BRACKET
RH / To: 6A999999 		- 1 Enquire
15A024 YSU500140
BRACKET
LH / From: 7A000001 		- 1 Enquire
15A024 YSU500150
BRACKET
RH / From: 7A000001 / To: 8A131487 		- 1 Enquire
15A024 YQU500610
BRACKET - 3-WAY CONNECTOR
RH / From: 8A131488 		- 1 Enquire
5230 WCE500180
MUFFLER - FRONT
AJ Petrol 4.2 V8 Supercharged 		- 1 Enquire
5259 YQU500400
BRACKET - 3-WAY CONNECTOR 		- 1 Enquire
