Heat Shields - Exhaust System (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Heat Shields - Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DEP1198 Bolt $0.28 To Order
XYG500160 BOLT $0.88 IN STOCK
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.50 IN STOCK
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.19 To Order
Photo Part No Description Price (each) Stock
WYH500050 NUT - LOCKING $2.57 IN STOCK
WYH500050 NUT - LOCKING $2.57 IN STOCK
Photo Part No Description Price (each) Stock
RYH500690 Nut Enquire To Order
Photo Part No Description Price (each) Stock
WEB500123 HEAT SHIELD $27.36 To Order
Photo Part No Description Price (each) Stock
WEB500133 HEAT SHIELD $29.57 To Order
Photo Part No Description Price (each) Stock
KQG500091 HEAT SHIELD $4.58 To Order
KQG500300 HEAT SHIELD $33.92 To Order
Photo Part No Description Price (each) Stock
WEB500012 HEAT SHIELD $149.86 To Order
Photo Part No Description Price (each) Stock
WEB500073 HEAT SHIELD $54.86 To Order
WEB500750 HEAT SHIELD $160.37 To Order
Photo Part No Description Price (each) Stock
WEB500580 HEAT SHIELD $73.94 To Order
Photo Part No Description Price (each) Stock
WEB500590 HEAT SHIELD $73.94 To Order
Photo Part No Description Price (each) Stock
LR007464 HEAT SHIELD $19.50 To Order
Photo Part No Description Price (each) Stock
LR007463 HEAT SHIELD $19.50 To Order
View All

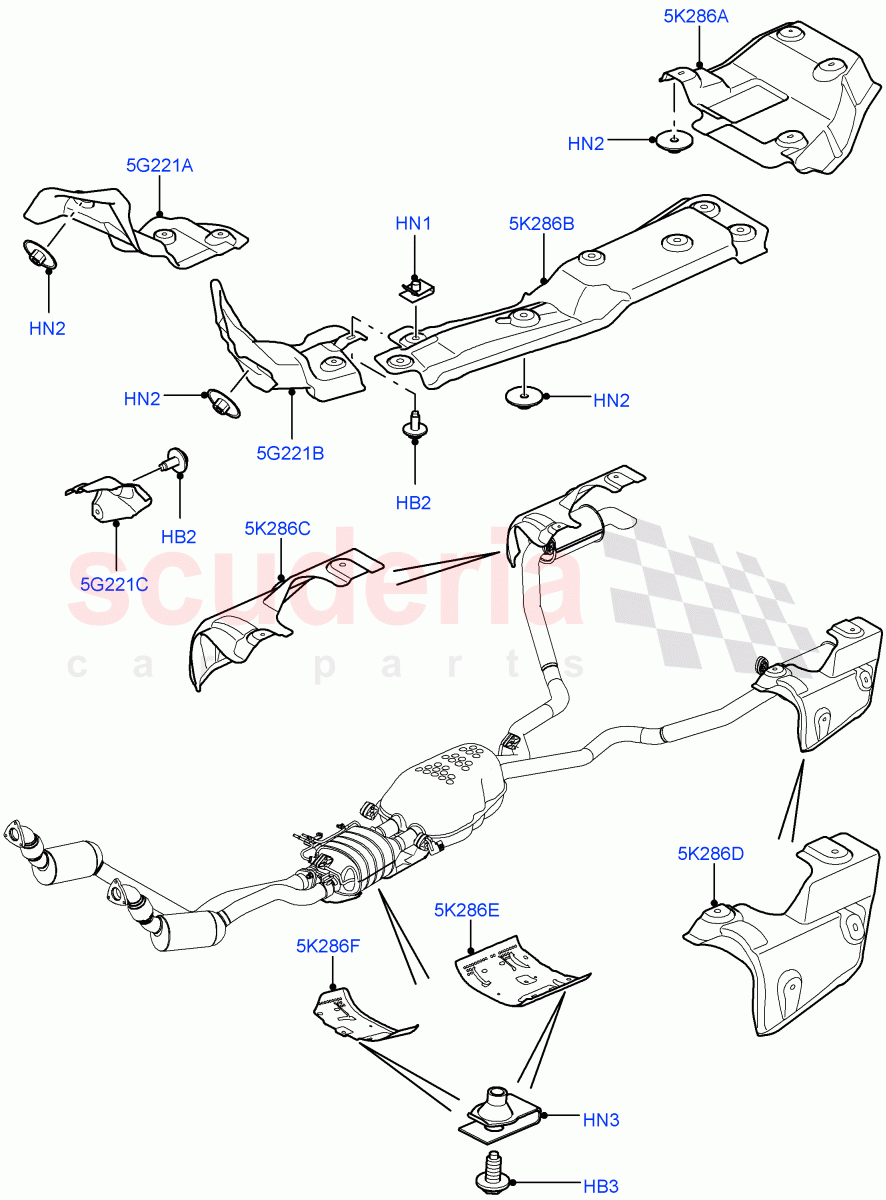

Heat Shields - Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB2 DEP1198
Bolt
M6 X 16MM / From: 7A000001 / To: 8A142900 		$0.28 5
HB2 XYG500160
BOLT
M6 x 12MM, Torx / From: 8A142901
IN STOCK 		$0.88 5
HB3 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: 8A000001
IN STOCK 		$0.50 8
HN1 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / From: 7A000001 		$1.19 1
HN2 WYH500050
NUT - LOCKING
M5 / From: 7A000001 / To: 7A999999
IN STOCK 		$2.57 20
HN2 WYH500050
NUT - LOCKING
M5 / From: 8A000001
IN STOCK 		$2.57 20
HN3 RYH500690
Nut
U-Nut M6 X 0.8 - 4.0 / From: 8A000001 		- 7 Enquire
5G221A WEB500123
HEAT SHIELD
RH / From: 7A000001 		$27.36 1
5G221B WEB500133
HEAT SHIELD
LH / From: 7A000001 		$29.57 1
5G221C KQG500091
HEAT SHIELD
From: 7A000001 / To: 7A999999 		$4.58 1
5G221C KQG500300
HEAT SHIELD
From: 8A000001 		$33.92 1
5K286A WEB500012
HEAT SHIELD
Rear / From: 7A000001 		$149.86 1
5K286B WEB500073
HEAT SHIELD
Intermediate / From: 7A000001 		$54.86 1
5K286B WEB500750
HEAT SHIELD
Intermediate / From: 8A000001 		$160.37 1
5K286C WEB500580
HEAT SHIELD
Rear RH / From: 7A000001 		$73.94 1
5K286D WEB500590
HEAT SHIELD
Rear LH / From: 7A000001 		$73.94 1
5K286E LR007464
HEAT SHIELD
Converter Shield, Rear / From: 8A000001 		$19.50 1
5K286F LR007463
HEAT SHIELD
Converter Shield, Front / From: 8A000001 		$19.50 1
