Steering Column (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

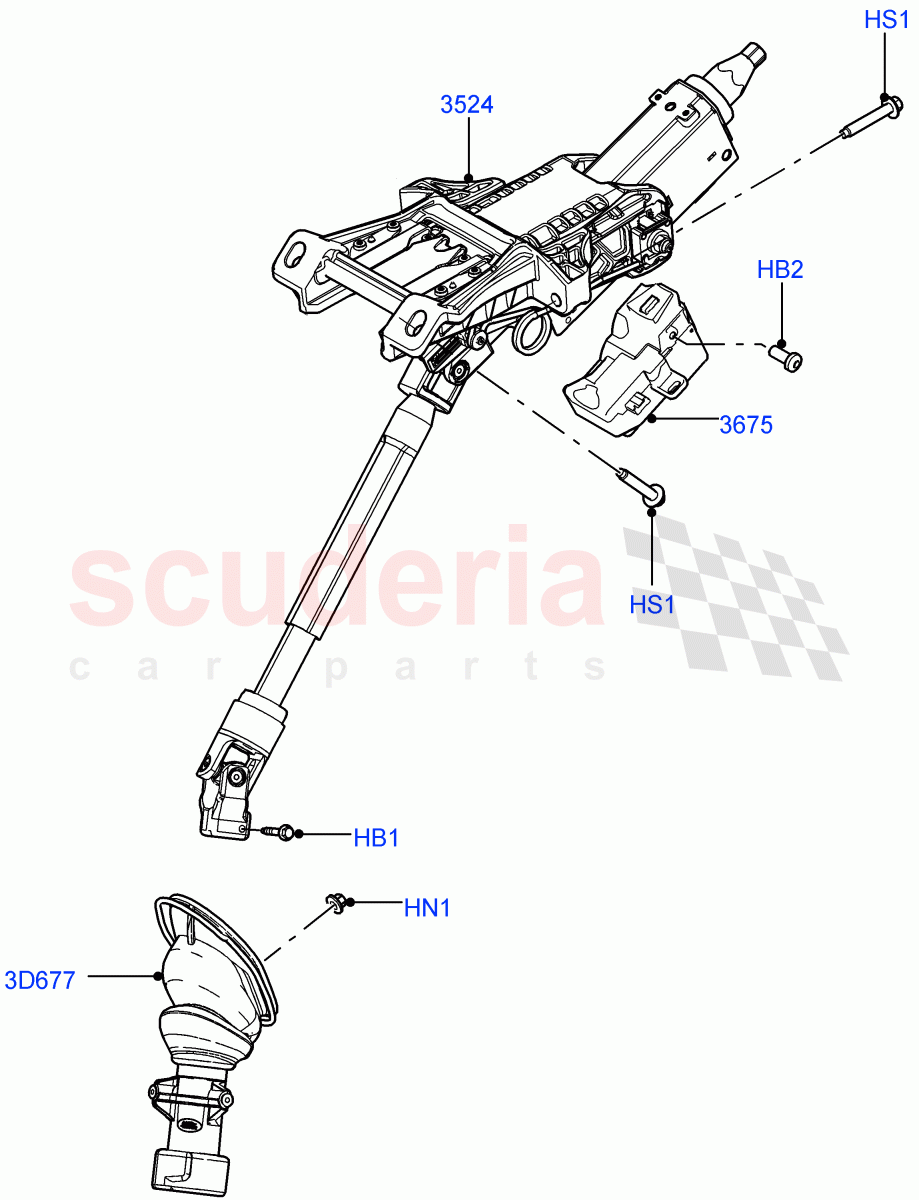

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Steering Column (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QYG500090	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020995	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500770	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028046	STEERING COLUMN	Enquire	To Order
	LR028049	STEERING COLUMN	Enquire	To Order
	LR032337	STEERING COLUMN	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028048	HOUSING - STEERING & IGNITION LOCK	Enquire	To Order
	LR040109	LOCK - STEERING COLUMN	Enquire	To Order
	LR056312	LOCK - STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030345	SEAL - STEERING COLUMN	Enquire	To Order
	LR030346	SEAL - STEERING COLUMN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	QYG500090	BOLT - HEX.HEAD	QYG500090 BOLT - HEX.HEAD Hex Head, Hexagonal Head, M8 X 30	-	1	Enquire
HB2	LR020995	BOLT - SPECIAL	LR020995 BOLT - SPECIAL M6 X 14MM, Shearbolt, Torx	-	2	Enquire
HN1	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer	-	4	Enquire
HS1	FYP500770	SCREW	FYP500770 SCREW M8 X 51MM, Torx	-	4	Enquire
3D677	LR030345	SEAL - STEERING COLUMN	LR030345 SEAL - STEERING COLUMN LHD / Bulkhead	-	1	Enquire
3D677	LR030346	SEAL - STEERING COLUMN	LR030346 SEAL - STEERING COLUMN RHD / Bulkhead	-	1	Enquire
3524	LR028046	STEERING COLUMN	LR028046 STEERING COLUMN LHD, With Locking Steering Column / To: CH631089	-	1	Enquire
3524	LR028049	STEERING COLUMN	LR028049 STEERING COLUMN LHD, Less Steering Column Lock / To: CH631089	-	1	Enquire
3524	LR032337	STEERING COLUMN	LR032337 STEERING COLUMN RHD / To: CH631089	-	1	Enquire
3524	LR032355	STEERING COLUMN	LR032355 STEERING COLUMN LHD, With Locking Steering Column / From: CH631090	-	1	Enquire
3524	LR032356	STEERING COLUMN	LR032356 STEERING COLUMN RHD / From: CH631090	-	1	Enquire
3524	LR032357	STEERING COLUMN	LR032357 STEERING COLUMN LHD, Less Steering Column Lock / From: CH631090	-	1	Enquire
3675	LR028048	HOUSING - STEERING & IGNITION LOCK	LR028048 HOUSING - STEERING & IGNITION LOCK With Locking Steering Column / To: CH705607	-	1	Enquire
3675	LR040109	LOCK - STEERING COLUMN	LR040109 LOCK - STEERING COLUMN With Locking Steering Column / From: CH705608 / To: EH898012	-	1	Enquire
3675	LR056312	LOCK - STEERING COLUMN	LR056312 LOCK - STEERING COLUMN With Locking Steering Column / From: EH898013	-	1	Enquire
