Air Cleaner (Nitra Plant Build) (5.0 Petrol Aj133 Dohc Cda) ((V) Fromm2000001)

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Air Cleaner (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR129322 ELEMENT - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR014311 BRACKET - AIR DUCT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR153344 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR153345 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR071914 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR041246 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR153334 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR153335 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR138753 MOULDING - SNOW INGRESS PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR153341 DUCT - DIRTY AIR Enquire To Order
View All

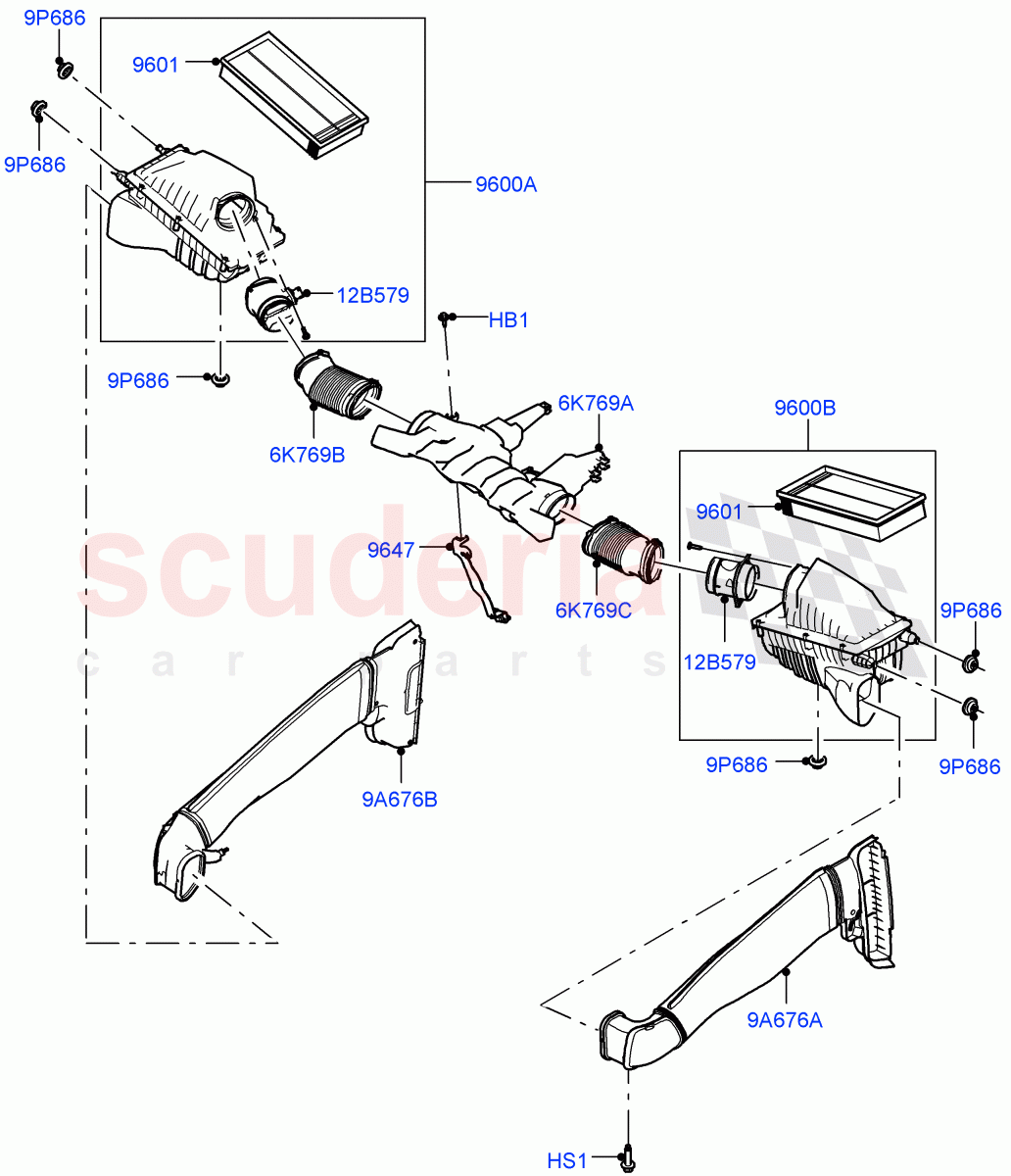

Air Cleaner (Nitra Plant Build) (5.0 Petrol AJ133 DOHC CDA) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Air Duct Support, Bolt And Washer, Hexagonal Head, M6 X 24MM / From: M2000001 		- 1 Enquire
HS1 RYG500220
SCREW
Dirty Air Duct, Hexagonal Head, M6 X 20MM / From: M2000001 		- 1 Enquire
6K769A LR041246
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: M2000001 		- 1 Enquire
6K769B LR153334
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: M2000001 		- 1 Enquire
6K769C LR153335
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: M2000001 		- 1 Enquire
9A676A LR138753
MOULDING - SNOW INGRESS PROTECTOR
LH / From: M2000001 		- 1 Enquire
9A676B LR153341
DUCT - DIRTY AIR
RH / From: M2000001 		- 1 Enquire
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: M2000001 		- 6 Enquire
12B579 LR071914
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: M2000001 		- 2 Enquire
9600A LR153344
CLEANER - AIR
RH / From: M2000001 		- 1 Enquire
9600B LR153345
CLEANER - AIR
LH / From: M2000001 		- 1 Enquire
9601 LR129322
ELEMENT - AIR CLEANER
From: M2000001 		- 2 Enquire
9647 LR014311
BRACKET - AIR DUCT SUPPORT
Air Duct Support / From: M2000001 		- 1 Enquire
